Book Press 12-1/2" x 13"

<< Previous in Book Presses Next in Book Presses >>

Price: $60.00
2
Item Number: 209
Manufacturer: Simplied Products, LLC
Manufacturer Part Number: 209
Usually ships in 1-3 days

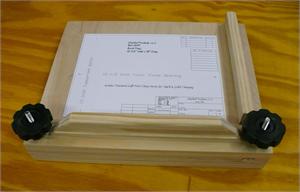

12-1/2" x 13" Book Press - NEW!

Item # 209 is a 12-1/2” wide x 13” deep working area, economical “Book Press” for making books, note pads, or similar items requiring a firmly pressed edge to glue a binding or edge with lots of extra room for a nice oversized cover of desired.  Made from Maple top plywood and select pine, smooth sanded, there are no finishes or waxes applied to potentially harm your work.  This model is designed to press a stack up to 1-1/4” high with a clamping width clearing 12-1/2” wide.  The table is 13” deep, but longer materials can be used as there is no depth restriction.  The side is squared with the front edge, although all sides are in square.  This Book Press will easily accommodate 8-1/2” x 11” paper with the clamped spine on the long edge.



The knobs will clear the side rail guide, thus allowing them to then be easily spun down holding everything firmly in place, ready for glue, rubber cement, etc.  The clamp bar is strengthened with a cross bar that doubles as a handle for easy lifting while positioning your work.   Overall nominal dimensions: 15-1/2” wide x 13” deep x 4” high (top of bolt).  A pair of plated 5/16-18 carriage bolts are glued & pressed in.  The clamp bar is pressed by using a pair of oversized 2-1/2” diameter polypropylene knobs with steel thread inserts for extra ease in clamping down tightly.



Special size beds, materials, or knobs will be cheerfully quoted upon request.
